SMR 65LE_SMR65LE
作者：台湾PMI导轨 发布时间：2017-09-02

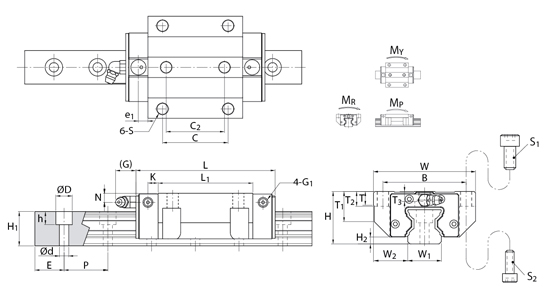

| 型号 | SMR 65LE | ||
| 外形尺寸 | H | 90 | mm |
| W | 170 | mm | |
| L | 302 | mm | |
| W2 | 53.5 | mm | |
| H2 | 12 | mm | |
| 滑块尺寸 | B | 142 | mm |
| C | 110 | mm | |
| C2 | 82 | mm | |
| S | M16 | mm | |
| L1 | 230 | mm | |
| T | 19.5 | mm | |
| T1 | 56 | mm | |
| T2 | 20 | mm | |
| T3 | 26 | mm | |
| N | 16.5 | mm | |
| G | 13.5 | mm | |
| K | 15 | mm | |
| e1 | 15 | mm | |
| G1 | M6 | mm | |
| 油嘴规格 | G-PT 1/8 | mm | |
| 导轨尺寸 | W1 | 63 | mm |
| H1 | 52 | mm | |
| P | 75 | mm | |
| E | 35 | mm | |
| D×h×d | 26×22×18 | mm | |
| 基本额定负荷 | 动负荷(C) | 263.5 | kN |
| 静负荷(Co) | 583.7 | kN | |
| 容许静力矩 | Mp单* | 21.49 | kN-m |
| Mp双* | 111.99 | kN-m | |
| My单* | 21.49 | kN-m | |
| My双* | 111.99 | kN-m | |
| Mr | 18.73 | kN-m | |
| 重量 | 滑块 | 17.6 | kg |
| 导轨 | 22.4 | kg/m |
