MSA 45LE_MSA45LE
作者：台湾PMI导轨 发布时间：2017-09-02

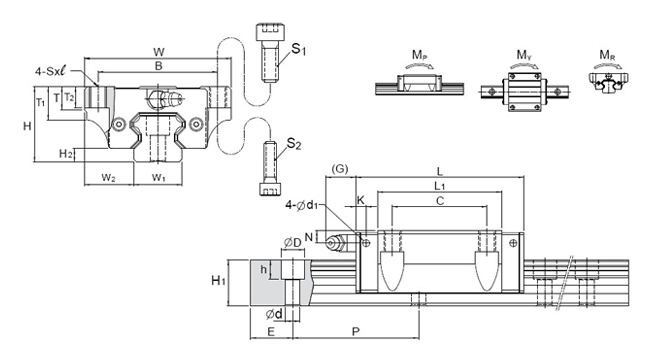

| 型号 | MSA 45LE | ||
| 外形尺寸 | H | 60 | mm |
| W | 120 | mm | |
| L | 169.5 | mm | |
| W2 | 37.5 | mm | |
| H2 | 10 | mm | |
| 滑块尺寸 | B | 100 | mm |
| C | 80 | mm | |
| S×l | M12×15 | mm | |
| L1 | 134.3 | mm | |
| T | 13 | mm | |
| T1 | 25 | mm | |
| T2 | 15 | mm | |
| N | 10 | mm | |
| G | 13.5 | mm | |
| K | 10.6 | mm | |
| d1 | 3.3 | mm | |
| 油嘴规格 | G-PT 1/8 | mm | |
| 导轨尺寸 | W1 | 45 | mm |
| H1 | 38 | mm | |
| P | 105 | mm | |
| E | 22.5 | mm | |
| D×h×d | 20×17×14 | mm | |
| 基本额定负荷 | 动负荷(C) | 102.4 | kN |
| 静负荷(Co) | 157.3 | kN | |
| 容许静力矩 | Mp单* | 3.13 | kN-m |
| Mp双* | 16.95 | kN-m | |
| My单* | 3.13 | kN-m | |
| My双* | 16.95 | kN-m | |
| Mr | 3.43 | kN-m | |
| 重量 | 滑块 | 3.9 | kg |
| 导轨 | 11.5 | kg/m |
